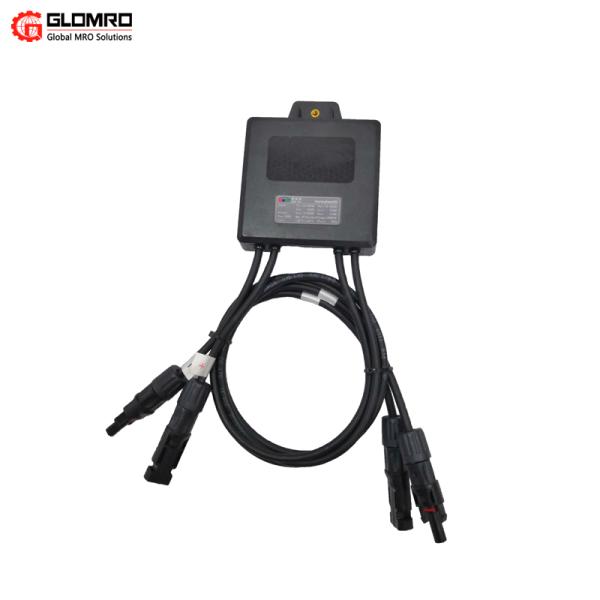

25-year Warranty 350w 400w 450w Solar Optimizer
Solar photovoltaic optimizer
Features
1. Module level Maximum Power Point Tracking (MPPT),5-25% more power yield
2. Panel’s performance monitoring in real time, warning and alert
3. Secure solar system, remote shutdown, elimination of high voltage danger
| Product parameters |
| Place of Origin | Shanghai, China |
| Brand Name | BAXIT |
| Model Number | BXT400 |
| Type | DC/DC Converters |
| Output Type | Single |
| Output Current | 10A |
| Output Frequency | 50/60HZ |
| Size | 130*132*24.5mm |
| Weight | 0.8kg |
| Certificate | ce/tuv |
| Product name | power optimizer |
| Efficiency | 99.50% |
| Package | 24pcs per box |
| Output | 0~450w |
| Ingress Protection | IP67 |
| Input(output) Connector | pv connector |
| Working Temperature | -40 ~ +85 ℃ |
| Relative Humidity | 0-100% |
| Warranty | 25 Years |
| Delivery Time | 15 days |
| Production Name | BXT350W | BXT400W | BXT450W |
| INPUT |
| MAX input power | 350W | 450W | 450W |
| MAX input voltage | 60V | 75V | 75A |
| MAX input current | 10A | 13A | 13A |
| MIN MPPT voltage | 16V | 12V | 16V |
| OUPUT |
| Output Power | 0~350W | 0~450W | 0~450W |
| Output Voltage | 0~60V | 0~75V | 0~75V |
| Communication | Wireless | Wireless/PLC | Wireless/PLC |
| MAX system voltage | 1000V | 1500V | 1000V |
| MAX output current | 11A | 13A | 13A |
| EFFICIENCY |
| MAX Conversion Efficiency | 99.50% |
| INSTALLATION SPECIFICATION |
| Size | 127.5*106*22mm | 130.3*109.6*25mm | 152*133*25.9mm |
| Weight | 530g | 588g | 540g |
| Input(output) Connector | pv connector |
| Working Temperature | -40 ~ +85 ℃ |
| Ingress Protection | IP65 | IP67 | IP67 |
| Relative Humidity | 0~100% |
| STANDARD COMPLIANCE |
| EMC | IEC61000-6-2,IEC61000-6-3 |
| Safety Regulations | IEC62109-1(Class II Safety) |
| Overvoltage Category | III |
| Certificate | TUV,CQC,CSA,CE |
